Towers, Columns
Process towers(columns) are vertical (usually tall) apparatus in which distillation prcess takes place in refineries and (petro)chemical plants. They are designed to withstand combination of weight, wind, seismic loads in addition to internal (or external) pressure and temperature. Besides the comprehensive design, tight tolerances in fabrication is requires to allow for internals installation and assembly and integrity of column in upright condition.
Read More +
ISOMAx Tower, Client: Tehran Refinery Co, C.S.+ S.S.410 cladded, 110 Tons, 2005/06

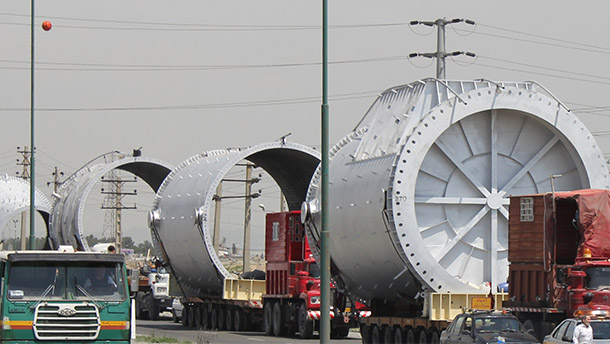

Stack during shipping, Client: South Pars Gas Company, Phase 12, C.S. 260 Tons, Length 90m, 2011/12

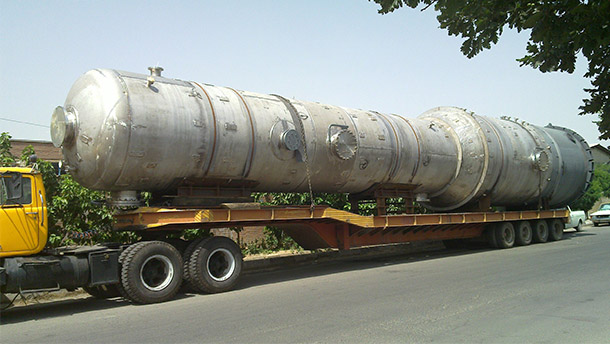

Quench Tower, Client: Tehran Refinery, S.S.316L, 40 Tons, 2009/10
Capabilities
-
Capacity
Dia: 8m
Length : 60m(one piece)
Thickness: 100mm
Weight: 200Tons(one piece)
-
Our Experienced limits
Dia: 8m
Length : 90m
Thickness: 32mm
Weight: 260Tons
-
Standards
ASME SEC VIII DIV.1,2
IPS
-
Material Range
Carbon steel
Low alloy steel( CroMoly gr.11,22, 9Chrom)
Stainless Steel
Monel
Copper-Nickel
Hastelloy
Duplex
-
Mechanical Design
Mechanical design of Towers are done according to international and local codes and standards in order to ensure their safe operation. Whenever the code rules does not predict limits accurately we use FEA for part design and analysis.
-
Services
Hydrogen Service, Sour service, caustic service
